Telephone Terminal Blocks
|
 | IDC style 66 block input and output |
| protects up to 12 lines, also available in 6 pair (2606QC/QC) and 25 pair 2625QC/AC) configurations. |
| Ideal for small PBX installations |
| Stackable to accommodate future expansion |
| External ground connectors accept 6-14 AWG ground wire |
| Accommodates industry standard 5-pin protection modules |
| Plastic components meet or exceed specifications set forth in U.L. 497 |
Ordering Information

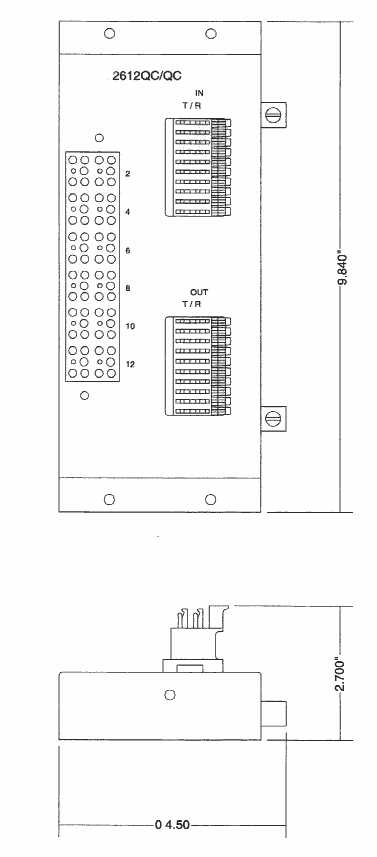

| Model | Pairs | Input | Output | Dimensions | Weight |
| 2612QC/QC | 12 | 66 block | 66 block | 9.84 x 4.5 x 2.7 | 2.5 |
