Telecom/Datacom/Signal Surge Protection

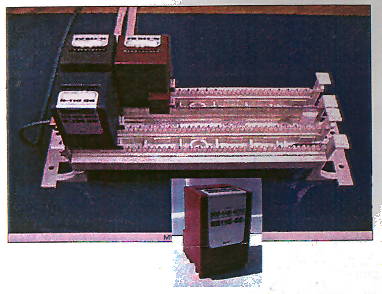

HD-110 SERIES
The HD-110 Series features state of the art
UHS technology for Telecom circuit protection in a unique type 110 compatible module. This advanced protection circuitry provides the industry's fastest trip time for surge voltages as well as sneak currents (an electrical characteristic that is often overlooked in surge
suppression). The HD-110 provides virtual isolation for delicate line cards from the hazards of electrical anomalies. UHS technology meets all UL and cUL requirements.
FEATURES
Color Coded Modules
Patent Pending UHS Technology
No-Tool Installation
Fastest Industry Trip Time
Automatic Reset
Type 110 Compatible |
Sneak Current Protection
Surge Voltage Protection
Series Protection Design
Replaceable Modular Design
Unique Grounding System
UL 497A |
APPLICATION
| Part # |
Module Color |
Specific Application |
| HD-110-CO |
Black |
Incoming C.O. Lines |
| HD-110-AE |
Blue |
Analog Extensions |
| HD-110-DE |
Red |
Digital Extensions |
SPECIFICATIONS
|
MODEL #
|
UL BREAK-
DOWN VOLTAGE |
MAX PEAK PULSE CURRENT Ip 10 X 1000µS |
MAXIMUM CAPACI-
TANCE (pf) |
MAX CONTINUOUS CURRENT |
RESPONSE TIME |
| HD-110-CO |
280 |
200A* |
<200 |
150mA |
<1ns |
| HD-110-AE |
210 |
200A* |
<200 |
150mA |
<1ns |
| HD-110-DE |
75 |
200A* |
<200 |
150mA |
<1ns |
*NOTE: Tip and Ring to Ground
