Main/Branch AC Panel Surge Protection
HMP Series

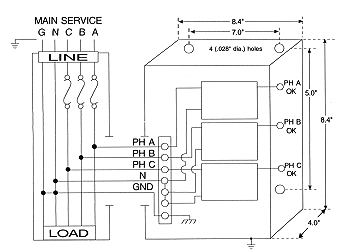

The HMP Series is a parallel surge suppressor, designed for use at the main service entrance or branch/distribution electrical panel. The HMP provides surge protection against high energy spikes and transients induced onto electrical power lines. The HMP Series features replaceable protection modules, high current fusing and per phase status indicators.

FEATURES

bulletStandard Units UL 1449 Listed
bulletAll Models designed as MAIN/BRANCH PANELS
bulletPer Phase Fusing
bulletReplaceable Surge Protection Modules
bulletOperational Indicators (per Phase)
bullet65kA Surge Rating
bulletTerminal Connection up to 8 AWG wire

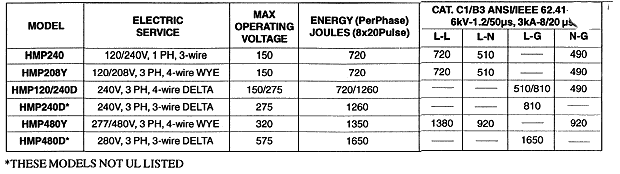

SPECIFICATIONS

bullet

Response Time - <5 nanoseconds

bullet

Operational Temperature: -40o to 85oC

bullet

Peak Surge Current (8x20Ás Pulse): 65kA

bullet

Enclosure - NEMA 1

bullet

Failure Mode - fused failsafe

bullet

Indicators - NEON (per phase)

bullet

Leakage Current - < 1ma

bullet

Weight 10 lbs
