Telecom/Datacom Surge ProtectorsH Series - PBX/KSU Protector with Resettable PTCs & Fuses
The H-Series modules are ultra high speed fused solid state secondary surge protectors for KEY/PABX systems. The units are available in three different clamping voltages. The H-Series is constructed with solid state silicon foldback technology, polyswitch resettable
fuses - PTC's, and failure fuses. These surge protection modules are intended to be used in conjunction with proper primary surge protectors (UL 497). The protective elements switch from the normal high impedance state to a low impedance state upon a detection of a surge, then switch back to

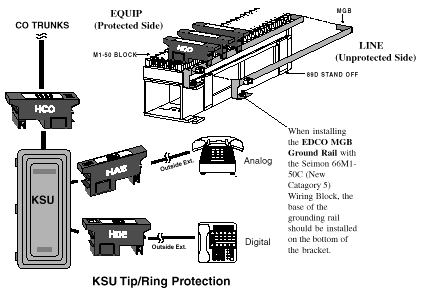

high impedance after the surge has passed. The H-Series single pair modules fit onto a standard M1-50 split block and replace the bridging clips. In addition, these modules require an MGB Ground Rail for each M1-50 block used. SPECIFICATIONS
|
 |
HCO-CO lines
| HAE - Analog Extensions
| HDE - Digital Extensions
| TTA-2 Test Point Tool available |
| Part No. | UL Breakdown Voltage | Max Peak Pulse Current Ip 10x 1000µs |
Typical Capacitance (pf) | Max Continuous Current |
|---|---|---|---|---|
| HCO | 300-380 | 200A | 100 | 145mA |
| HAE | 200-310 | 200A | 100 | 145mA |
| HDE | 75-85 | 200A | 100 | 160mA |
Installation
Caution: The hybrid design of this product includes series resistance. Do not place this product in service on any signal lines capable of more than 150 milliamperes continuously.
