PolyPhaser dc Blocked

IS-50 and IS-B50 SERIES
BROADBAND HF/VHF/UHF COAXIAL PROTECTORS



APPLICATION:

For general radio use; surface or bulkhead mountable options, NOT where transmitter combining is performed.

bulletUtilizes UL497B listed gas tube
bulletModels from 1.5MHz to 1000MHz
bulletMulti-strike capability
bulletLow strike throughput energy

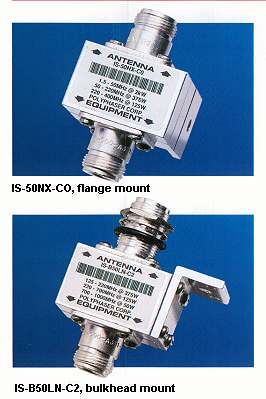

bulletFlange mount and bulkhead mount options
bulletNot weather resistant
bulletWeatherize using WK-1
bulletAluminum enclosure
bullet18-8 stainless steel hardware
bulletUHF nickel shell silver center, TFE
bulletN silver shell and gold center pin


Mil Specs: Meets 6' all angle drop test, Op to 70,000', MIL-STD-202, 170F Cond. B -65oC to 125oC, rainproof option meets many Mil specs under 202 and 810 for vibration, shock (both), fungus, etc. UHF & N connectors
MIL-C-39012, QQ-S-365, QQ-B-626, QQ-C-530 and
MIL-G-45204, follows MIL-STD-454J, Solder QQ-S-571 Sn62.




SPECIFICATIONS:

Surge: 50kA IEC 1000-4-5 8/20Ás waveform 500 joules
Turn-on: 600Vdc ▒20% 2.tns for 2kV/ns L models
  1200Vdc ▒20% 7ns for 2kV us H models
VSWR:   -CO: 1.5 to 2MHz is 1.2 to 1 & 2 to 400MHz is 1.1 to 1
  -Cl: 50 to 60MHz is 1.2 to 1 & 60 to 700MHz is 1.1 to 1
  -C2: 125 to 100MHz is 1.1 to 1 type K, 1.2 to 1 type F & UHF
Insertion Loss: 0.1 dB over frequency range
Temperature: -45oC to +85oC Storage/Operatng +50oC
Vibration: 1G up to 100Hz

ORDER INFORMATION: (Female)

IS-B50LU-CO Throughput Energy: </=10mJ* (UHF connectors/Bulkhead)
Frequency Range: 1.5MHz to 400MHz
Max. Power: HF 2kW, VHF 375W, UHF 125W

IS-B50HU-CO Throughput Energy:</=20mJ* (UHF connectors/Bulkhead)
Frequency Range: 1.5MHz to 400MHz
Max. Power: HF 3kW, VHF 500W, UHF 250W

IS-B50LU-C1 Throughput Energy: </=600ÁJ* (UHF connectors/Bulkhead)
Frequency Range: 50MHz to 700MHz
Max. Power: VHF 375W, UHF 125W

IS-B50HU-C1 Throughput Energy: </=1mJ* (UHF Connector Bulkhead)
Frequency Range: 50MHz to 700MHz
Max. Power: VHF 500W, UHF 250W

IS-B50LN-CO </=10mJ* (N connectors/Bulkhead)
Frequency Range: 1.5MHz to 400MHz
Max. Power: HF 2kW, VHF 375W, UHF 125W

IS-B50HN-CO Throughput Energy:</=20mJ* (N connectors/Bulkhead)
Frequency Range: 1.5MHz to 400MHz
Max. Power: HF 3kW, VHF 500W, UHF 250W

IS-B50LN-C1 Throughput Energy: </=600ÁJ* (N connectors/Bulkhead)
Frequency Range: 50MHz to 700MHz
Max. Power: VHF 375W, UHF 125W

IS-B50HN-C1 Throughput Energy: </=1mJ* (N Connector Bulkhead)
Frequency Range: 50MHz to 700MHz
Max. Power: VHF 500W, UHF 250W

IS-B50LN-C2 Throughput Energy: </=220ÁJ* (N Connector/Bulkhead)
Frequency Range: 125MHz to 1000MHz
Max. Power: VHF 375W, UHF (low) 125W 800MHz to 1GHz 50W

IS-B50HN-C2 Throughput Energy: </=800ÁJ* (N Connector/Bulkhead)
Frequency Range: 125MHz to 1000MHz
Max. Power: VHF 500W, UHF (low) 250W 800MHz to 1GHz 125W

IS-50UX-CO Throughput Energy: </=10mJ* (UHF connectors/Surface)
Frequency Range: 1.5MHz to 400MHz
Max. Power: HF 2kW, VHF 375W, UHF 125W

IS-50UX-C1 Throughput Energy: </=600ÁJ* (UHF connectors/Surface)
Frequency Range: 50MHz to 700MHz
Max. Power: VHF 375W, UHF 125W

IS-50NX-CO Throughput Energy: </=10mJ* (N connectors/Surface)
Frequency Range: 1.5MHz to 400MHz
Max. Power: HF 2kW, VHF 375W, UHF 125W

IS-50NX-C1 Throughput Energy: </=600ÁJ* (N connectors/Surface)
Frequency Range: 50MHz to 700MHz
Max. Power: VHF 375W, UHF 125W

IS-50NX-C2 Throughput Energy: </=220ÁJ* (N Connector/Surface)
Frequency Range: 125MHz to 1000MHz
Max. Power: VHF 375W, UHF (low) 125W 800MHz to 1GHz 50W

IS-75F-C1 Throughput Energy: </=1mJ* (F Connector/Surface)
Frequency Range: 4MHz to 900MHz VSWR </=1.2:1
Max. Power: HF 100W, VHF 100W, UFH 25W

Add suffix: -MA for male antenna part connector
-ME for male equipment part connector

*Typical
Choose lowest throughput energy for desired frequency.
Energy based on 6kV/3kA 8/20Ás waveform.
