PolyPhaser dc Blocked Filter

IS-CLF50 SERIES - CELLULAR LIGHTNING BLOCK PROTECTOR


APPLICATION: Weatherized unit for transmit and/or receive only.

bulletIndustry's best RF performance
bulletWide bandwidth
bulletSmall footprints and fully weatherized housing
bulletIndustry's lowest throughput energy
bulletMaintenance free
bulletMulti-strike capability
bulletNo gas tubes

TEN YEAR WARRANTY



SPECIFICATIONS:

Surge: 20kA IEC 1000-4-5 8/20Ás waveform
Frequency Range: 800MHz to 1.0GHz / 800MHz to 2.0GHz (CLF50LN only)

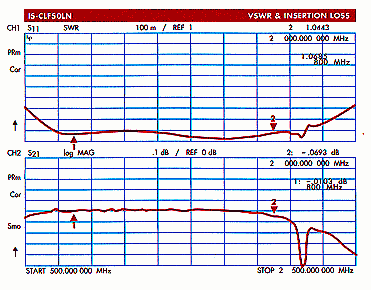

VSWR: </=1.1 to 1 over frequency range
Insertion Loss: <0.05dB typical, <0.1 dB maximum
Power: 200W for L, 500W for H
Throughput Energy: </=0.5ÁJ for 3kA @ 8/20Ás waveform
Temperature: -40oC to +85oC Storage/Operating
Relative Humidity: to 95%
Vibration: 1G up to 1 00Hz


ORDER INFORMATION:

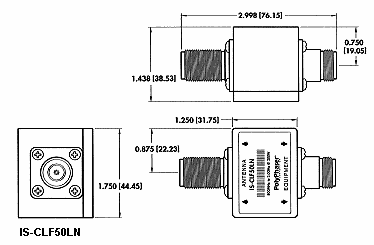

IS-CLF5OLN N connector (female), surface/bulkhead mounting

IS-CLF5OHN N connector (female)

IS-CLF5OHD DIN connector (female)

IS-CLF5OLD DIN connector (female)

Add suffix: -MA far male antenna part connector
-ME far male equipment part connector
