Polyphaser Combiner Protectors

IS-CT50H Series
Cellular/Paging Combiner Coaxial Protector


APPLICATION:

For the 800 to 980MHz bands where multi-transmitters are combined, excellent receive only protector, Broadcast STL links.
Employs UL 497B listed gas tube
Multi-strike capability
Unique dc blocked air strip line design
Very low throughput energy
High number and power of combined channels handled
(See Appendix B for formula) 750W single channel
Bulkhead mounting/grounding to 1/4" panels for type N connectors
Not weather resistant
Weatherize using WK-1
18-8 stainless steel hardware
N silver shell and gold center pin

Mil Specs: Many - call with requirements

SPECIFICATIONS:

Surge: 20kA IEC 1000-4-5 8/20Ás waveform 138 Joules
Turn-on: 1200 Vdc Vt = 1800V
Turn-on Time: 7.0ns for 2kV/ns

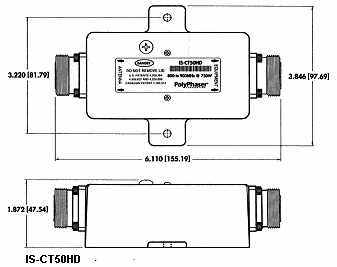

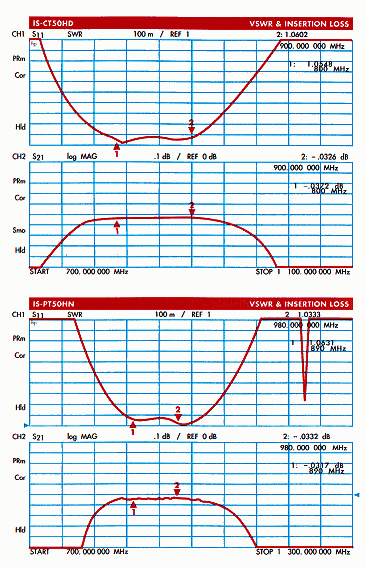

VSWR: </=1.1 to 1 over frequency range
Insertion Loss: </= 0.1dB over frequency range
Throughput Energy: 15nJ typical for 3kA @ 8/20Ás waveform
Max. power: 750W single channel (br> (See Appendix B for Multi-Channel Capability
Temperature: -20oC to +50oC Storage/Operating
Vibration: 1G up to 100Hz

ORDER INFORMATION

IS-CT50HN Frequency Range: 800 to 900 MHz
N female connectors, flange mount

The CT50HN is discontinued - please call
the sales office at 800-543-8790 for
a possible replacement.

IS-CT50HN-B Frequency Range: 800 to 900 MHz
N female connectors, bulkhead mount

IS-CT50HD Frequency Range: 800 to 900 MHz
DIN 7/16 female connectors, flange mount

IS-CT50HD-B Frequency Range: 800 to 900 MHz
DIN 7/16 female connectors, bulkhead mount

IS-PT50HN Frequency Range: 890 to 980 MHz
N female connectors, flange mount
IS-PT50HN-B Frequency Range: 890 to 980 MHz
N female connectors, bulkhead mount

IS-PT50HD Frequency Range: 890 to 980 MHz
DIN 7/16 female connectors, flange mount

IS-PT50HD-B Frequency Range: 890 to 980 MHz
DIN 7/16 female connectors, bulkhead mount

Add suffix: -MA for male antenna port connector
-ME for male equipment port connector
