Polyphaser dc Injector/dc Path Protectors

IS-DB75F SERIES
Broadband DC Path 75 Ohm Coaxial Protector


APPLICATION:

Satellite dish receivers where the LNB(s) is powered via the coax line from the receiver. Simplex RF LAN operation with switched antenna preamp.

FEATURES:

bulletSingle and dual [NB models
bulletTwo-stage patented design
bulletMulti-strike capability
bulletHoused use only - mounts into lS-TVRO
bulletAluminum enclosure
bullet18-8 stainless steel hardware
bulletNot weather resistant
bulletWeatherize using WK-1


Mil Specs: Many - call with requirements

TEN YEAR WARRANTY




SPECIFICATIONS: Surge: 18kA IEC 1000-4-5 8/20Ás waveform 110 Joules
Turn-on: 26Vdc, -lVdc ▒5%
Turn-on Time: 6ns for 2kV/ns

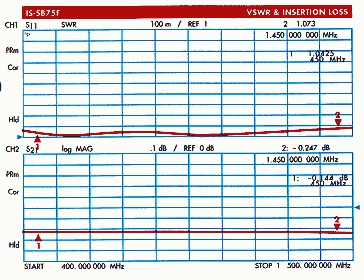

VSWR: 1.5 to 1 over the frequency range
Insertion Loss: </= 0.3dB over the frequency range
Frequency Range: 450MHz to 1450MHz
Temperature: -25oC to +85oC Storage Operating +50oC

ORDER INFORMATION:

IS-SB75F for single protector
F females standard, flange mount
Throughput Energy (typical) 580ÁJ

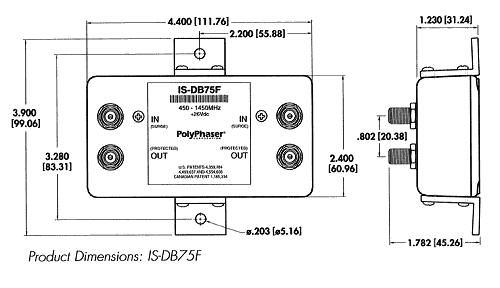

IS-DB75F for dual protector
F females standard, flange mount
Throughput Energy (Typical) 580ÁJ

Energy based on 6kV/3kA 8/20Ás waveform
