PolyPhaser dc Blocked

IS-GF50LN and IS-LR50LN SERIES
FILTERED AND GROUNDED COAXIAL SURGE PROTECTORS


APPLICATION:

GaAs FET receivers and law powered transmitters from 20MHz to 1 GHz.



bulletFour pole filter further attenuates strike energy
bulletdc grounded on equipment part for less strike noise
bulletWide bandwidths
bulletMulti-strike capability
bulletHoused use only
bulletUltra-low throughput energy
bulletBulkhead mounting grounding (flange mount adapter)
bulletWeatherized using WK-1
bulletAluminum enclosure, 18-8 stainless steel hardware
bulletN silver shell and gold center pin

SPECIFICATIONS:

Surge: 18kA IEC 1000-4-5 8/20Ás waveform 110 Joules
Turn-on: 90V ▒20%
Turn-on Time: 4ns for 2KV/ns
VSWR: 1.1 to 2 over frequency range
Insertion Loss: </=0.2dB throughout most of the frequency range
Temperature: -40oC to +85oC Storage/Operating +50oC


ORDER INFORMATION: N CONNECTORS (Female)

IS-LR50LN Throughput Energy (typical) 700ÁJ
Frequency Range: 20MHz to 300MHz
Max. Power: HF 25W, VHF low

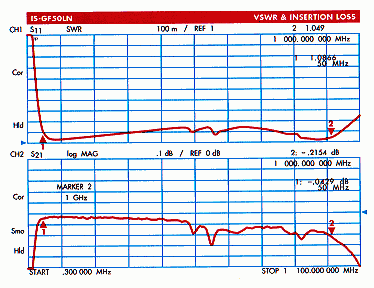

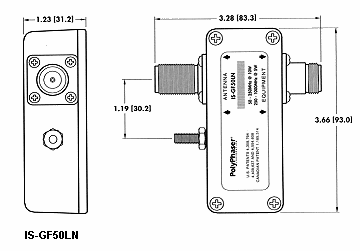

IS-GF50LN Throughput Energy (typical): 150pJ
Frequency Range: 80MHz to 900MHz
at </=1.1 to 1 VSWR
(50MHz to 10Hz at </=1.2 to 1 VSWR)
Max. Power: HF l0W, VHF 5W


Add suffix: -MA for male antenna part connector
-ME for male equipment port connector
Energy based on 6kV/3kA 8/20Ás waveform.
