PolyPhaser dc Blocked Filters

IS-MF50 SERIES - MICRO LIGHTNING BLOCK PROTECTOR


APPLICATION:

Weather tight unit for transmit and/or receive only.

bulletIndustry's best RF performance
bulletSmall footprint & fully weatherized housing
bulletIndustry's lowest throughput energy
bulletMaintenance free
bulletMulti-strike capability
bulletNo gas tubes/dc blocked

TEN YEAR WARRANTY




SPECIFICATIONS: Surge: 20kA lEG 1000-4-5 8 /20Ás waveform
Frequency Range: lS-MF50LD: 1.7GHz to 2.2GHz - lS-MF50LN: 980MHz to 2.6GHz

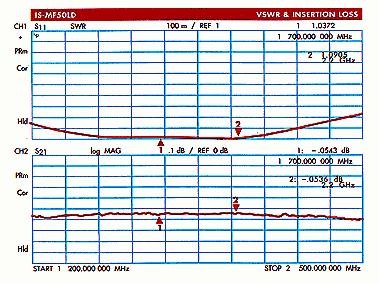

VSWR: </=1.1 to 1
Insertion Loss: </=0.1 dB
Power: 100W
Throughput Energy: </=0.5ÁJ for 3kA @ 8/20Ás waveform
Temperature: -40oC to +85oC Storage/Operating
Vibration: 1G up to 1 00Hz




ORDER INFORMATION:

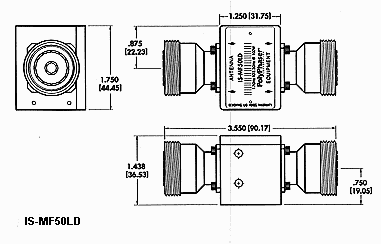

IS-MF50LD DIN connector, 1.7GHz to 2.2GHz freq.

IS-MF50LN N connector, 980MHz to 2.6GHz freq.

IS-MF50LN-MA N connector, 1.7GHz to 2.2GHz freq.

IS-MF50LN-ME N connector, 1.7GHz to 2.2GHz freg.

Add suffix: -MA for male antenna port connector
-ME for male equipment port connector
