PolyPhaser dc Blocked Filters

IS-PF50 SERIES - PAGING  COMBINER  SURGE PROTECTOR


APPLICATION:

Surge Protector for combiner transmit and or receive only.

bulletMulti-channel transmit, 750W max single channel
bulletIndustry's lowest throughput energy
bulletMaintenance free
bulletMulti-strike capability
bulletNo gas tubes dc blocked

TEN YEAR WARRANTY



SPECIFICATIONS:

Surge: 20kA IEC 1000-4-5 8/20Ás waveform 138Joules
Frequency Range: 890MHz to 980MHz

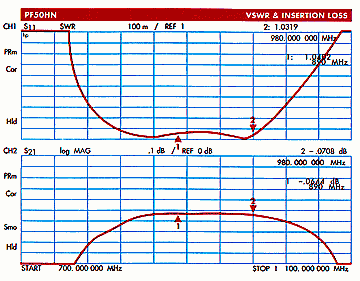

VSWR: </=1.1 to 1
Insertion Loss: <0.0568 typical, </=0.1 dB maximum
Power: 750W single channel
Throughput Energy: </=5ÁJ typical for 3kA @ 8/20Ás waveform
Temperature: -40oC to -+85oC operating storage
Vibration: 1G up to 100Hz


ORDER INFORMATION:

IS-PF50HN N connector (female), surface mounting

IS-PF50HD DIN connector (female), surface mounting

Add suffix: -MA for male antenna port connector
-ME for male equipment port connector
