PolyPhaser Combiner Protectors

IS-VU50HN and IS-CU50HN SERIES
VHF/UHF CROSS BAND COMBINER COAXIAL SURGE PROTECTORS


APPLICATION:

Surge protection where multi band transmit channels are combined to save transmission line expense and then re-separated for individual band antennas.

bulletHigh number of combined channels handled
bulletHigh turn on for clean peak voltage handling
bulletHigh channel power handling
bulletdc blocked design
bulletLow throughput energy
bulletMulti lightning and transient strike capability
bulletBulkhead mounting/grounding (flange mount adaptor>
bulletNot weather resistant
bulletWeatherize using WK-1
bulletAluminum enclosure
bullet18-8 stainless steel hardware
bulletN silver shell and gold center pin

SPECIFICATIONS:

Surge: 20kA IEC 1000-4-5 8/20Ás Waveform 500 Joules
Turn-on: IS-VU50HN: 1800 Vdc Vt=1200V
  ISCU50HN: 1200Vdc Vt=1200V
Turn-on Time: IS-VU50HN 1.5ns
     IS-CU50HNT 7ns

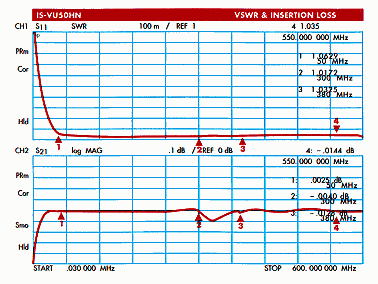

VSWR:</= 1 .1 to 1 over frequency range
Insertion Loss: </=0.ldB over frequency range
Temperature: -25oC to +50oC Storage/Operating
Vibration: 1G up to 100Hz



ORDER INFORMATION:

IS-VU50HN Throughput Energy 2.23mJ (typical)
Frequency Range: 50 to 550MHz
N female connector, bulkhead mounting
Max. Power: 750W single channel*

IS-CU50HN Throughput Energy: 2.23 mJ (typical)
Frequency Range: 450 to 900MHz
N female connector, bulkhead mounting
Max. Power: 250W single channel*


Add suffix: -MA for male antenna port connector.
   -ME for male equipment port connector.
*See Appendix B Multi-Channel Capability
Energy based on 6kV/3kA 8/20Ás waveform.
