XTE/XHP SERIES
XTE/(x)XHP/(zz)
X = VOLTAGE CODE
ZZ = OPTIONS

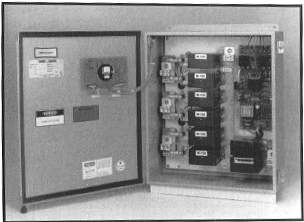

The XTE/XHP Series is a modular parallel suppressor designed for service entrance or downstream panelboard applications. The XTE/XHP is a multi-stage suppression circuit consisting of field proven, fast acting 40mm MOVs. A redundant surge suppression path is provided for each mode (L-N or L-L, L-G, N-G) guaranteeing continuous service. Each surge suppression module is individually fused and utilizes APT’s Patent Pending TranSafe ™ circuitry with thermal cutout to ensure safe operation during severe over-voltages and high fault current conditions. The suppression elements are encapsulated in UL Listed and Patented Ceramgard ® providing another level of safety. A filter network is added to provide wave shape smoothing and a high level of EMI/RFI noise attenuation.

On-line diagnostics continuously monitor the unit status and feature redundant LEDs to signal a reduction in surge capacity or loss of a suppression circuit. An audible alarm with test and silence features is included in the standard diagnostic package. All APT products are designed and tested in accordance with the recommendations and procedures of ANSI/IEEE C62.41 and C62.45. The XTE/XHP is UL 1449 Second Edition Listed, and qualified for service entrance applications under Section 37.3 for their most severe, 25kA, fault current test.

Design Features
bulletIndividually Fused Suppression Modules
bulletThermal Cutout
bulletRedundant Suppression Modules Per Phase (2 per phase)
bullet

Copper Bus Bar Connection (1/4" Bus Bar)

bulletSolid State Bi-directional
bulletRedundant Operational Indicators (LED) to indicate loss of protection or circuit fully operational
bulletHigh Energy Parallel Design for Category C3 applications
bullet For External Mounting next to panelboards, switchgear or motor control centers
bullet Front Panel Alarm with Test/Silence Switch
bulletAC Tracking Filter with EMI/RFI Filtering up to -50dB from 100kHz to 100MHz

Quality

bulletFive Year Warranty: Includes unlimited module replacement
bulletBurn-in Tested Prior to Shipment
bulletShort Circuit Withstand Tested to 100KAIC

Performance Features

bulletSurge Capacity    L-N     N-G
160kA/phase       160k   160k
240kA/phase       240k   240k
320kA/phase       320k   320k
bulletUL 1449 Second Edition Listed, 1283 recognized and CUL
bullet200KAIC Rated Fusing
bulletLess than 1/2 Nanosecond Response Time
bullet5000 Category C3 Impulses with <10% Drift

Environmental Features

bulletRelative Humidity Range: 0 - 95% non-condensing
bulletOperating Frequency: 47 - 63 Hz
bulletOperating Temperature: -40oC to +65oC
bullet External Mount NEMA 1 Standard (other NEMA enclosures are available)
Standard Size: 14.75"x12.88"x4.5" (LxWxD)
bulletWeight: 35 Lbs.



Model

Service Voltage

L-N

L-G

N-G

L-L

MCOV
XTE/1XHP 120/240V Split Phase 330 330 330 700 150
XTE/2XHP 120/208V 3-Phase, Wye 330 330 330 700 150
XTE/3XHP 120/240V 3-Phase hi-leg Delta 330/
700		 330/
700		 330 700/
1200		 150/
275
XTE/4XHP 277/480 3-Phase WYE 700 600 600 1200 320
XTE/5XHP 480V 3-Phase De;ta   1500   1500 575
XTE/51XHP 480V 3-Phase corner grnd Delta   1500   1500 575
XTE/6XHP 240V 3-Phase Delta   700   700 275
XTE/61XHP 240V 3-Phase Corner grnd Delta   700   700 275
XTE/7XHP 220/380V 3-Phase Wye 700 600 600 1200 320
XTE/8XHP 347/600V 3-phase Wye 1000 1000 900 1800 420
XTE/9XHP 600V 3-Phase Delta   1500   1800 750
XTE/91XHP 600V 3-Phase corner grnd Delta   1500   1800 750

Notes: *L--G voltage shown  for /G option only.   XTE/9.91 not available with /CL option.   /G option not avaiable on XTE/55.51, 6.61, 9.91 (3-wire DELTA).

Ordering information for Optional Features should be appended to the model number and seperated by a slash(/).

Example: XTE/2XHP/CL/DS/G

/CX Module Option increases the surge current capacity from 160kA/phase to 240kA/phase.
/CL Module Option increases the surge current capacity from 160kA/phase to 320kA/phase.
/DS Integral Disconnect Switch when a spare 3 pole breaker is not available for connecting the
suppressor, order with an internal disconnect. [Increases size to 20"x20"x7 (LxWxD)] Other disconnect options available.
/DC The Dry Contacts monitor each phase providing a summary alarm. The contacts are terminated in a DB-9 connector.
/RM Remote Monitor with indicator lights and audible alarm is available for use with the Dry Contact Option.
/SC Surge Counter option monitors the occurrence of transients entering the facility through the
suppressor and is supplied with a lithium battery to provide power to the counter in the event of a power failure.
/2S Dual LCD Surge Counters (Seperate counter for L-N and L-G modes).
/G Adds L-G mode of protection in WYE configurations.
