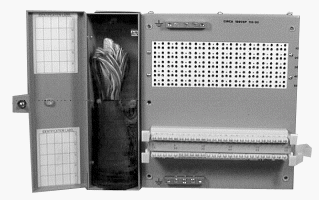

Telephone Building Entrance Blocks
1880ENM1-50
Features & Benefits:
| MS2 connector input and 110 connector output
| Protects up to 50 lines - also available in 25 pair
(1880ENM1-25) configuration
| Built in stand off bracket allows for easy distribution cable routing
| Designed with an internal splice chamber and cover over
incoming connection
| 26 AWG fuselink included
| Stackable to allow for future service expansion |
| Extrnal three position ground lug for building ground or
connecting additional units |
| Accepts industry standard 5 pin protection module
| Designed to exceed the requirements set forth in
Underwriters Laboratory's UL497 |
| | | | | |
Application:
The Circa 1880ENM1-50 is designed to provide overvoltage and/or current protection for commercial multi-pair applications such as shopping centers, hospitals, apartment complexes and large campus environments. This versatile unit is available with
several types of terminating options.
ORDERING INFORMATION
Model No.
|
# of Pairs
|
Input
|
Output
|
Dimensions
(H" x W" x D")
|
Weight (lbs)
|
1880ENM1-50
|
50
|
MS2
|
110 connector
|
10.5x12.24x4.85
|
11
|
Protection modules ordered separately
