TELEPHONE
Building Entrance Terminals


1900/2000 Series

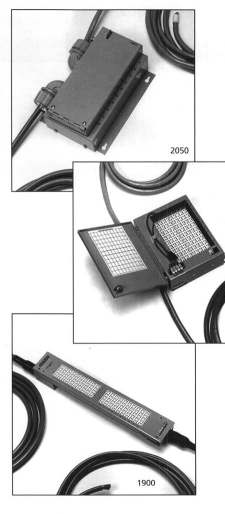

Features & Benefits:


bulletIndustry standard stub in, stub out configuration
bulletIncoming 26 AWG cable serves as a fuse link
bulletSeries 1900 is wall or frame mountable
bulletSeries 2000 available in 50 pair configurations (2050)
bulletEquipped with three position ground lug to building
ground to terminal extend or attach additional units
bulletAccommodates industry standard 5 pin protection
modules
bulletHigh density units ideal for campus environments

Application:


The Circa 1900/2000 series of building entrance terminals are designed to provide cost effective protection for high density, multi-pair installations such as schools, hospitals, large industrial complexes and apartment buildings.

Design Specifications:

bulletconstructed from 16 AWG steel
bulletpowder epoxy coated chassis
bulletplastic components meet or exceed specifications set forth in U.L. 497
bulletcable stub is equipped with a potted "moisture proof" dam






ORDERING INFORMATION

Model No. # of Pairs Input Output Dimensions
(H" x W" x D")		 Weight (lbs)
1900A1-100 100 25 ft. 26 AWG shielded cable 25 ft. 24 AWG shielded cable 4.0x24.0x3.95 34
2000-100* 100 25 ft. 26 AWG shielded cable 25 ft. 24 AWG shielded cable 10.1x10.5x5.35 24
2000-100** 100 15 ft. 26 AWG shielded cable 15 ft. 24 AWG shielded cable 10.1x10.5x4.75 20
2050-50* 50 25 ft. 26 AWG shielded cable 25 ft. 24 AWG unshielded cable 9.55x7.75x4.5 12.5
2050-50** 50 15 ft. 26 AWG shielded cable 15 ft. 24 AWG unshilded cable 9.55x7.75x4.5 10

Note: Alternate cable lengths and gauges are available upon request
Note: Protection modules ordered separately
* US Model
** Canadian Model


Cable Ordering Guide

Designations for the available cable types:
"A" 24 AWG shielded, "B" 24 AWG unshielded, "C" 26 AWG shielded, "D" 26 AWG unshielded, "E" 22 AWG shielded, "F" 22 AWG shielded, grease filled, "G" 19 AWG shielded, grease filled

  1. Apply the first six digits of the "order no."
  2. Incoming cable (if applicable) - apply "letter designation" for proper cable gauge
  3. Incoming cable (if applicable) - numerically mark cable length
  4. Outgoing cable (if applicable) - apply "letter designation" for proper cable gauge
  5. Outgoing cable (if applicable) - numerically mark cable length in feet

i.e. unit with incoming cable 26 AWG, 30 ft. _ C30
i.e. unit with incoming cable 26 AWG, 30 ft. and outgoing cable 24 AWG, 30 ft. - _ _ C30A30

DIMENSIONAL DRAWINGS

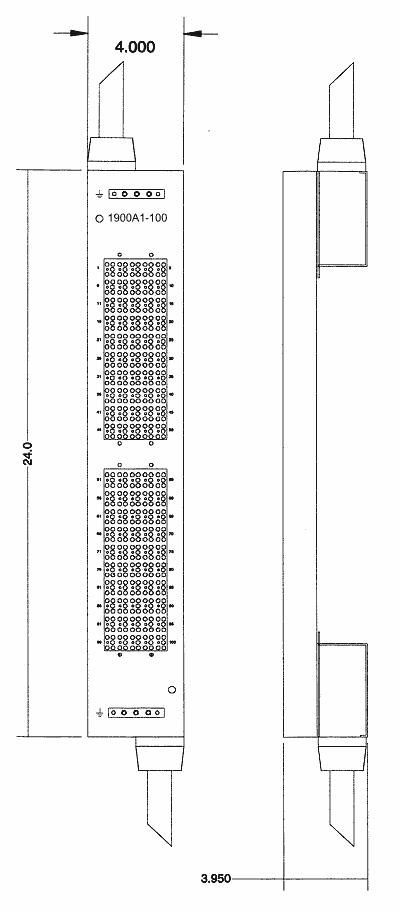

bullet 1900A1-100

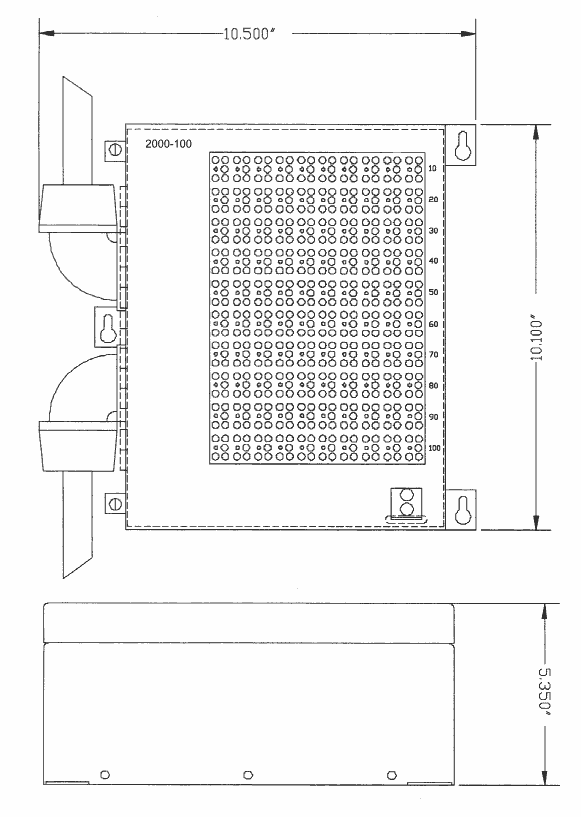

bullet 2000-100

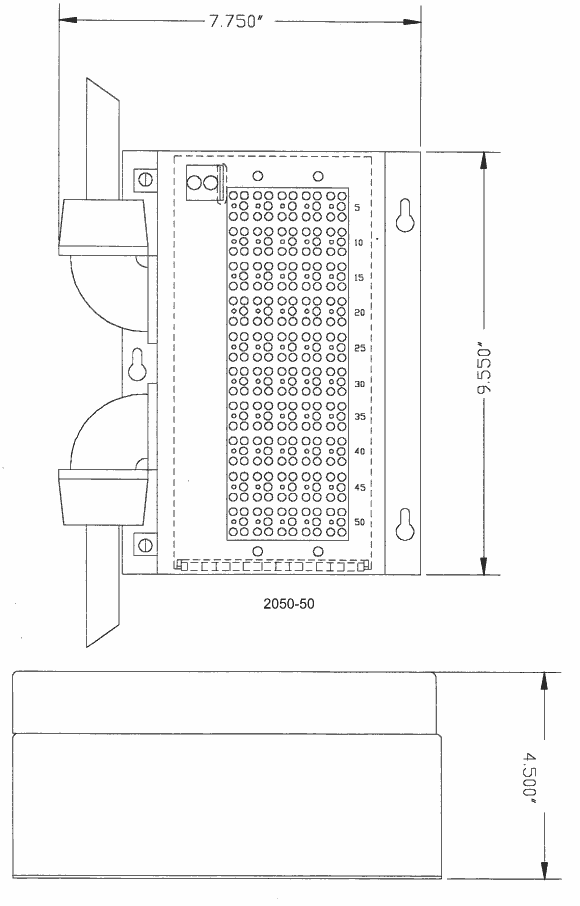

bullet 2050-50
