FIRE & SECURITY SURGE PROTECTORSFAS-100F Series

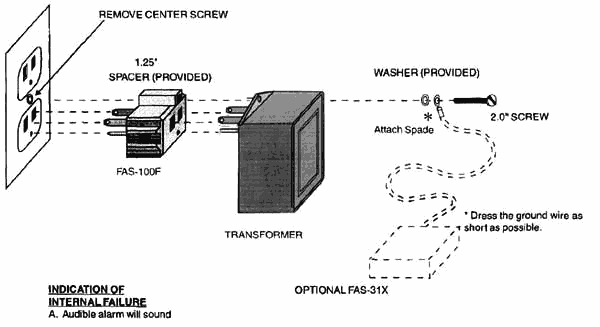

The FAS-100F is a low profile AC power surge suppressor. The transformer is mounted via provided hardware to the
FAS-I00F and the duplex outlet. Features & Benefits
|
 |
Transformer Mount Audible Alarm | Filtering | L-G L-N & N-G Protection | Ground Ref. Screw | Fast Response Time | Automatic recovery | UL 1449 Listed | |
SPECIFICATIONS
| Peak Surge current (10 Times): | |
| 8 x 20us | 4500A |
| Protection | L-N, L-G & N-G |
| EMI and RFI Noise Filtering UL 1449 Listed | 15A-125V AC, 1875 Watt Rating |
| Response Time | <5ns |
| Voltage Clamp (1 ma) | 130V |
| Voltage Clamp *8x20us | 400V |
| Surge Life (8x20us) | 10,000 surges with 150A Impulse |
| Power Dissipation | 125 Joules |
| Operating Temp | -40o to +85oC |
| Weight | 2.0 Oz |
| Dimensions (inches) | 1.9 x 1.2 x 1.8 |
