EDCO Telecom/Datacom Surge
Protection Products

FAS-TEL & FAS-31XT

Description

The FAS-TEL and FAS-31XT are single pair Telephone or Data Line Protectors that implement advanced two stage hybrid design. These units address over voltage transients with silicon breakover devices, while sneak and fault currents are mitigated with new "PTC' technology which consist of solid state resettable fuses.

FAS-31XT replaces the RJ3 IX jack with a protected version. Four screw terminals are provided to wire the protector in the same manner as a standard RJ3 IX jack. The FAS-3IXT can be used alone or as an accessory to the TS500G or TS-500F AC Power Surge Protector. The TS-500G and TS-500F provide a convenient grounding point for the FAS-31XT I FAS-TEL ground wire.

The FAS-TEL is nearly identical to the FAS-31XT except without the shorting bars. Two screw terminals are provided to connect Telco Line to protector. Protected equipment such as modems, are plugged into female modular jack on the FAS-TEL.

Features & Benefits

	<1 Nanosecond Response Time
	Solid-State Silicon
	Breakover Technology
	Low Capacitance
	Over Current Protection
	UL 497A Listed
	Line-to-Line Protection
	Line-to-Ground Protection
	Polyswitch Resettable Fuses - PTCs

SPECIFICATIONS

Part Number	Max Peak Signal Voltage	Nominal Breakdown Voltage	Max Current Ip 10x1000µs	Typ Cap (pf)	Max Clamp Voltage @Ip
Fas-Tel-015T	12	15	124	200	2100
Fas-Tel-030T	24	30	71	38	1180
Fas-Tel-050T	43	50	45	57	900
Fas-Tel-060T	52	60	36	66	750
Fas-Tel-200T	220	270	200A (T-G, R-G)	10*	100
Fas-31X	220	270	200A (T-G, R-G)	10	100

All protectors: Max Continuous Current: 150ma; Nominal Series Resistance 8 Ohms

* NOTE: Forward Voltage After Breakover

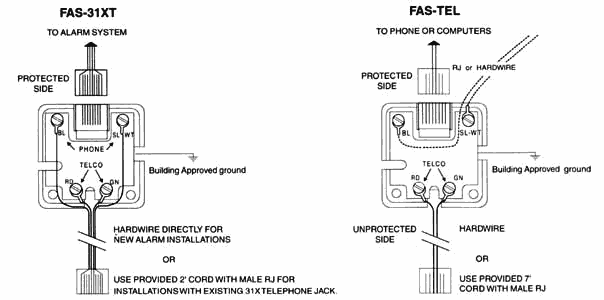

INSTALLATION
