EDCO Telecom/Datacom Surge Protection Products

Water and Wastewater Signal Surge Suppressors



SS64 & SS65 Series




Description

EDCO SS64 and SS65 Series surge suppressors are designed for the water and waste water industry. These multi-stage hybrid surge suppressors address over voltage transients with gas tube and silicon avalanche technology. In addition, sneak and fault currents are mitigated with new "PTC" devices which consist of solid state resettable fuses. The units are encapsulated in stainless steel pipe nipples making them suitable for use in severe environments. The SS64 models protect a signal pair and the SS65 models protect a signal pair plus the cable shield (drain wire).

Features & Benefits

bulletTransient Surge Protection for Low Voltage Signal Lines
bulletSneak-Fault Current Protection
bulletResettable Fusing - PTC's
bulletDifferential and Common Mode Protection
bulletAutomatic Recovery
bulletEncapsulated in Stainless Steel Pipe Nipples
bulletProtection for One Pair (2 Wires & Shield on SS65)

SPECIFICATIONS


Maximum Signal Voltage 28V max
DC Clamping Level (L-G)* 36V ± 10%
DC Clamping Level (L-L)* 72V ± 10%
Maximum let thru Voltage:
    Line-to-Ground (10 x 700us) 44V @ 400A
Maximum let thru Voltage
    Line-to-Line (10 x 700us) 90V @ 400A
 Series Resistance (per conductor)  8 Ohms
Capacitance: (zero volts bias) (L-L) 600 pf typical
  (L-G) 1200 pf typical
Number of Occurrences 400 @ 500 A
  (10 x 1000us)

*Other Clamp Voltages Available

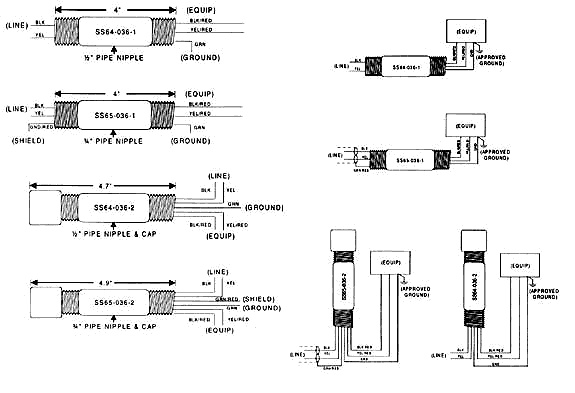

( For larger images click the links below below)

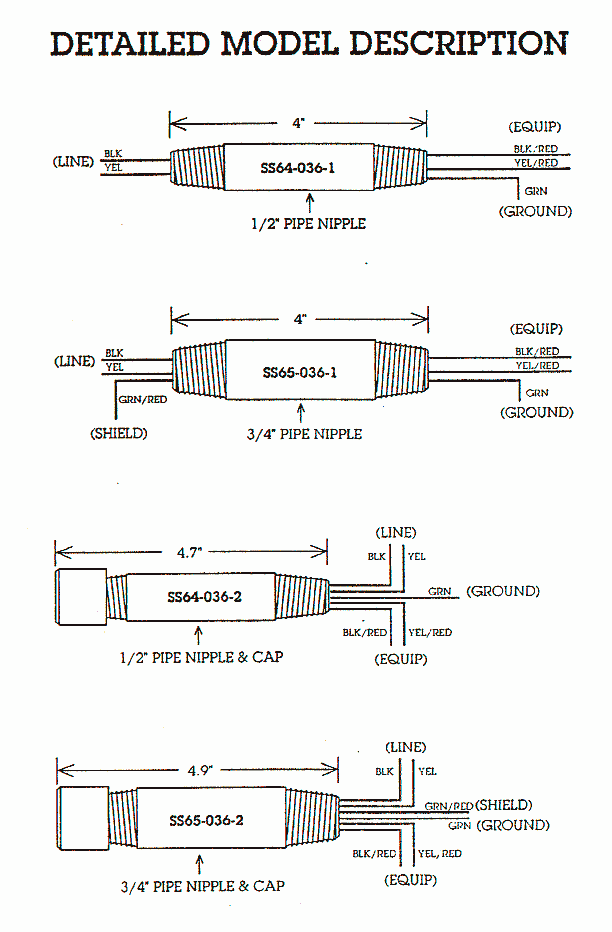

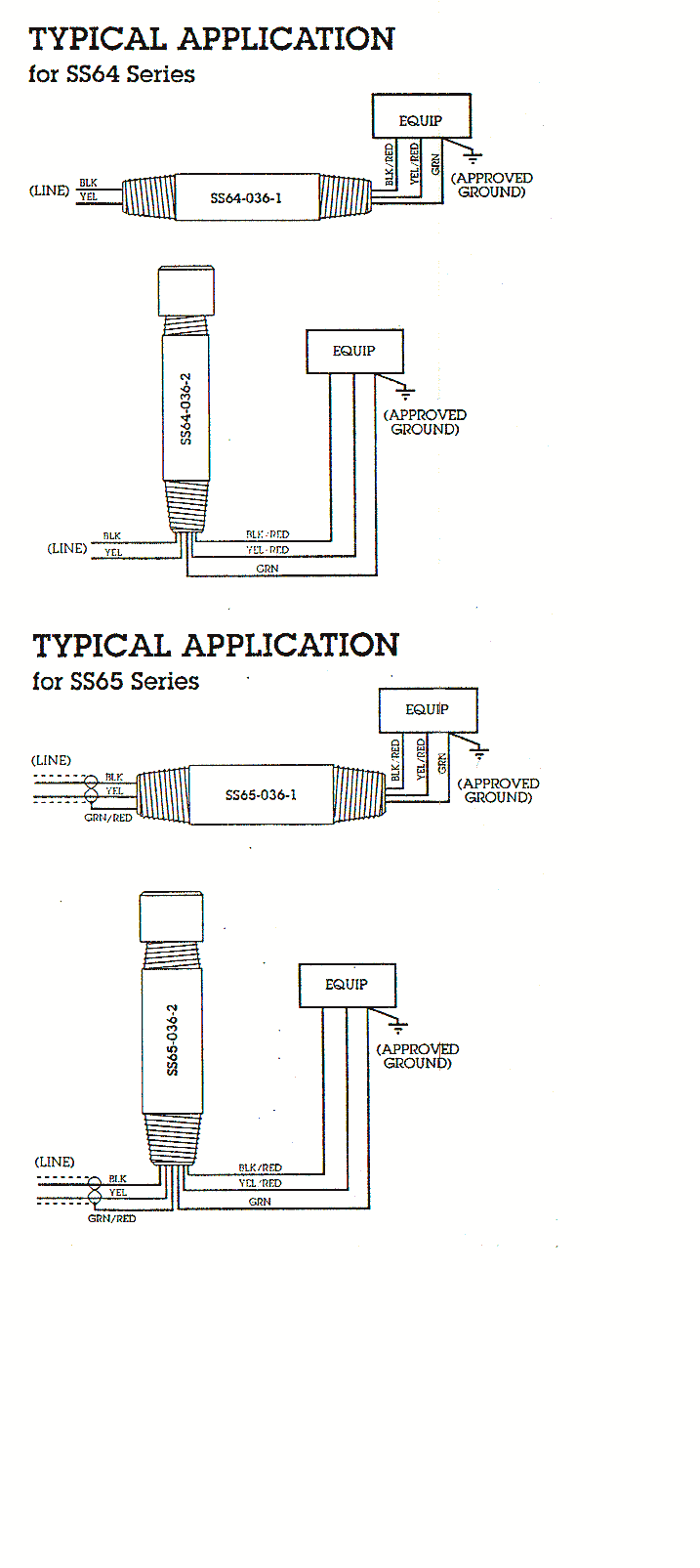

Detailed Model Description                        Typical Applications



Caution: The hybrid design of this product includes series resistance. Do not place this product in service on any signal lines capable of supplying more than 150 milliamperes continuously.
