FIRE AND SECURITY SURGE SUPPRESSORS

TER Series



Description

The "TER" surge suppressor installs directly onto electronic circuit wiring terminal screws. This close proximity preserves "TER's" response time, clamping level and ground reference by eliminating lead lengths. The "TER's" miniature size fits directly inside fire or security panels, CCTV housings and other system electronic enclosures. These features maximize surge suppression performance while reducing hardware and labor costs to install.


Features & Benefits

bulletFits Euro Style and Barrier Strip Terminals
bulletAutomatic Recovery
bulletSingle Pair Protection
bulletHigh Energy Silicon Avalanche Technology
bulletUL 497B listed

SPECIFICATIONS



Part #

 Max. Peak Signal V

Nominal
Clamp
Voltage Ip

Max.Peak
PulseT
8x20µs

Resistance
(Ohms)

Response
Time (ns)

TER-018

15

18

1442A

0

<1

TER-030

 31

33

721A

0

<1

TER-043

 41

43

546A

0

<1

 TER-060

58

60

427A

0

<1


Fits in Series with Circuits Wires at the Terminal Screws Zone, Buss, Loop, Data, Receive, Bell. Horn. Strobe, PanTilt & CCTV


TER-018 (For 12VDC Systems)
TER-030 (For 24VDC Systems)
TER-043 (For 25VAC Systems)
TER-060 (For 48VDC Systems)

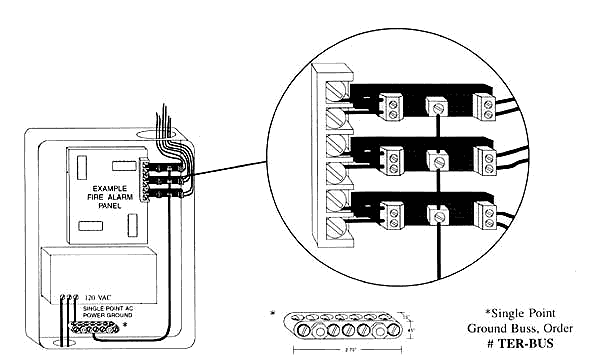

1. Install Zone or Loop circuit wires (I pair) at the vacant end of the "TER".
2 Slip the "TER's" Rigid Mounting Prongs into the panels designated Zone or Loop terminals and tighten.
3. Use a 16-12 AWG solid wire, attach all "TER's" via the center ground terminal. Run this wire to your panel's SINGLE POINT" AC power ground, or Building Approved Ground.
