PolyPhaser Grounding Components

LOW INDUCTANCE COPPER GROUNDING STRAP - CS SERIES



APPLICATION:

Where any wire ground path is used, the copper strap will have lower inductance. Radials on bare mountain tops -- the strap's sharp edge will allow a lower voltage side flashing to the bare rock than wire.


bulletLower inductance than wire
bulletEasy to work with (cut, solder, etc.)
bulletSold in increments of 25', 50', 75' & 100
bulletCan not be fused open by lightning
bulletAbove or in ground usage
bulletCan be sandwiched for exothermic welding
bulletCan be used with TK series clamps see note 53)
bullet1-1/2" can be used with strap connector clamps
bulletShipped in rolls

Options: 200, 300, 400 and 500 foot lengths available.

ORDER INFORMATION:

CS112-25 - 1.5" width, 25' length
CS112-50 - 1 5" width. 50' length
CS112-75 - 1.5" width, 75' length
CS112-100 - 1.5" width, 100' length
CS3-25 - 3" width, 25' length
CS3-50 - 3" width, 50' length
CS3-75 - 3" width, 75' length
CS3- 100 - 3" width, 100' length

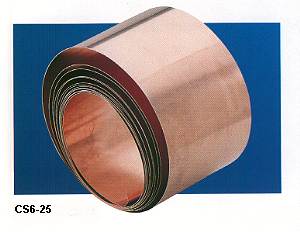

CS6-25 - 6" width, 25' length
CS6-50 6" width, 50' length
CS6-75 6" width, 75' length
CS6-100 6" width, 100' length
