Polyphaser DC Battery Power Surge Protectors



APPLICATION:

Solar panels can capture large amounts of nearby strike energy due to their large area. The protectors prevent energy from entering the building and damaging the regulator.



bulletProtects series pass and relay type regulators for
30A and 50A
bulletHas head room for open circuit arrays and battery
surface charge
bulletPositive, negative and floating grounds
bulletLow resistance/voltage drop
bulletAluminum enclosure
bullet18-8 stainless steel hardware

SPECIFICATIONS:

Surge Per Pair: 18kA IEC 1000-4-5 8/20µs waveform
Turn-on:
 18Vdc for IS-12VDC
27Vdc for IS-17 VDC
35Vdc for IS-24VDC
53Vdc for IS-35VDC
80Vdc for IS-48VDC
100Vdc for IS->60VDC
Temperature: -400C to +65C Storage/Operating +500C
Turn-on Time: <2ns
Resistance: 0.02 Ohms
Throughput Surge: 30A - <420mJ 6kV 3kA 8/20µs waveform
50A-<420mj 6kV 3kA 8/20µs waveform



ORDER INFORMATION:

IS- 12VDC -30A or -50A -NG (Negative Ground)
IS-J7VDC -30A or -50A -PG (Positive Ground)
IS-24VDC -30A or -50A -FO (Floating Ground)
IS-35VDC
IS-48VDC
IS-60VDC
Port number example- IS-12VDC-30A-NG

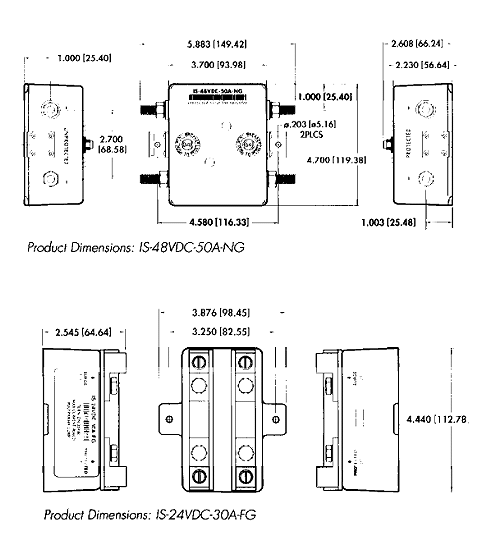

Connections: 30A - 14 to 1/0 AWG, Compression Lug SQA - 3/8-24 SS Studs
