M*50-LN NEMP Protector Series

REPLACED BY DSXL SERIES

APPLICATION:

Lightning NEMP protection for any frequency range from 1GHz to 3GHz for point to point links receive/transmit and broadcast to 100W.

	50 Ohm models; 1GHz to 3GHz
	Multi-strike capability
	Low strike throughput energy
	Bulkhead mounting grounding (flange mount adapter)
	Not weather resistant
	Weatherize using WK-1
	18-8 stainless steel hardware
	N silver shell and gold center pin Mil Specs: Many - call with requirements

SPECIFICATIONS:

Surge: 20kA EC 100045 8 20µs waveform 138 Joules
Turn-on: 600Vdc ±20%
Turn-on Time: 2.5ns for 2kV/ns

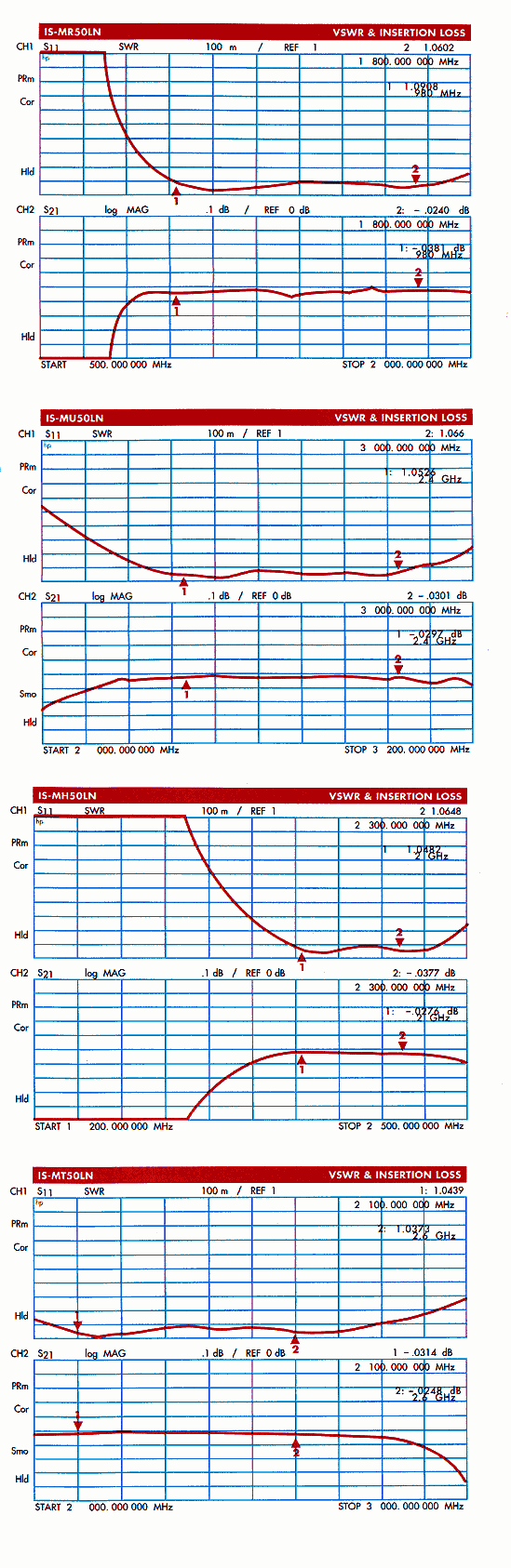

Insertion Loss: </=0. 1 dB
VSWR: 1.1 to 1
Power: 100W
NEMP Peak Throughput Voltage: 56Vp typical for 3/250ns waveform
Temperature: -45^oC to +85^oC Storage Operating +50^oC
Vibration: 1G up to 100Hz

ORDER INFORMATION:

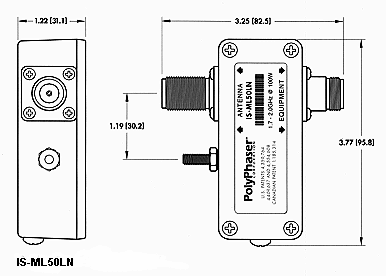

N CONNECTORS/BULKHEAD

IS-MR50LN for 980MHz to 180Hz, Throughput Energy: 4.0µJ

IS-ML50LN for 1.7GHz to 2.0GHz, Throughput Energy: 15.0µJ*

IS-MH50LN for 2.00Hz to 2.3GHz, Throughput Energy: 4.0nJ*

IS-MT50LN for 2.10Hz to 2.6GHz, Throughput Energy: 4.0nJ*

IS-MU50LN for 2.4GHz to 3.0GHz, Throughput Energy: 32.0nJ*

Add suffix: -MA for male antenna port connector
-ME for male equipment port connector

*Typical
Energy based on 6kV/3kA 8 /20µs waveform
