Polyphaser Twisted Pair/Cable Protectors

MPT Series


APPLICATION:

For more than 6 pair on 66 blocks, these protectors replace gas tubes and have many advantages Fast response time Balanced turn-on voltage Three voltage ratings for 66 type punch down blocks Lower differential voltage than 3-element gas tubes Lower harmonic energy than gas tube Clamps surges No fast dv/dt slew like crow bar tube action Fails in shorted mode like gas tubes Easily replaced if necessary Balanced MOV type common mode protector One unit = one pair protector Stagger mount on 66 block for >8 lines (66 block not included) Adjustable ground bus for 66 block available

Specifications

Application: Surge (per pair) Operating Voltage C (L to G)
T1 Data
Extension Lines
Telco Trunks		 4kA (60 Joules)
4kA (60 Joules)
4kA (72 Joules)
13kA (100 Joules)		 ± 17
± 24
± 75
±200		 27nF
27nF
5nF
1.6nF
Turn-on Time: 2.5 ns for 2kV/ns
Temperature: -25oC to +25oC Storage/Operating

ORDER INFORMATION

IS-MPT-17*
IS-MPT-24*
IS-MPT-75:  For extension lines on 66 blocks

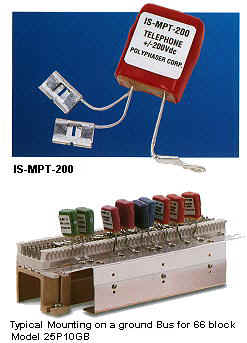

IS-MPT-200:  For Telco Trunks on 66 blocks
25P10GB:  Ground bus for 25 pair 10" 66 block adjustable for 66 blocks with and without stands.

* Call factory for bandwidth.
