Polyphaser Line Extension Protectors - 120/240Vac
IS-PLDO and IS-PLSO Series
APPLICATION:
Where equipment requires power line protection for surges/lightning. This unit ‘will provide proper protection, filtering and grounding since it has an all metal grounded enclosure.
 | NRTL listed UL #1449 (Domestic only)
| In-line multi-stage (EMP rated) protectors
| All aluminum grounded enclosure/panel for lower inductance
| Multi-strike capability
| Circuit breakered for added protection
| Master on/off switch
| Can be mounted/grounded to a Copper Single Point Ground Panel (See page 42)
| Crimped and soldered terminal construction for reliability

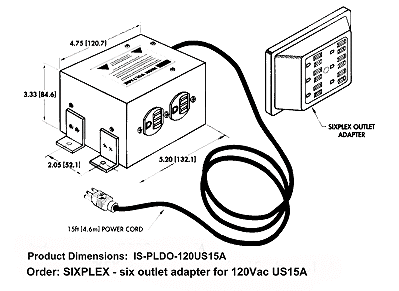

| Duplex outlet adaptable to six outlets (Domestic)
| IS-PLDO models are duplex outlets
| IS-PLSO models are single outlets
| | | | | | | | | | |
ORDER INFORMATION:
|

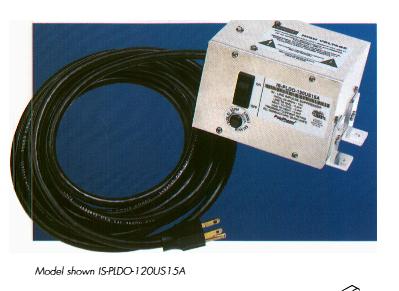

IS-PLDO-12OUS15A for 12OVac with 15 cord, 15 Amps |
|
IS-PLDO-120US20A for 120Vac with 6 cord, 20 Amps |
|
IS-PLDO-240US15A for 240Vac with 10’ cord, 15 Amps |
|
IS-PLDO-240AU10A for 240Vac with 2.5m cord, 10 Amps |
|
IS-PLSO-240CE15A for 240Vac with 2.5m cord, 15 Amps |
|
IS-PLSO-2401N15A for 240Vac with 2.5m cord, 15 Amps |
|
IS-PLSO-240IS15A for 240Vac with 2.5m cord, 15 Amps |
|
IS-PLSO-240UKl0A for 240Vac with 2.5m cord, 10 Amps |
| Other international plug styles available. The international Plug Patterns are
here |
SPECIFICATIONS:
Surge: 120kA IEC 1000-4-5 8/20µ waveform 800J (120Vac) 1.4kJ (240Vac)
Turn-on: 200Vdc (120Vac(, 370Vdc (240Vac)
Turn-on Time: Not defined due to filtering
EMI/RFI Filtering: (Measured to MIL-STD-220)
-50dB @ 5MHz,
-55dB @ 70MHz,
-45dB @ 140MHz
Surge Let-Through Voltage: 6kV/3kA 8/20µ waveform
400Vp to 10kA, 600Vp to 20kA (12OVac)
700Vp to 10kA, 1000Vp to 20kA (240Vac)
Temperature: +50C to +40C Storage/Operating
