Polyphaser Hardware Power Supply Shunt Protector

PSP SURGE SUPPRESSOR SERIES


APPLICATION

Used for commercial and military equipment surge protection - incorporated within the equipment and properly fused or breakered


bulletLow cost
bulletSuperior because it is referenced to your equipment
bulletHigh speed MOV & high current gas tube combination
bulletLong life
bulletMust be locally fused breakered (15A
bulletSoldered in place
bullet1 -3/4" long #20AWG leads
bulletNRTL C-LR#106164-4

SPECIFICATIONS

Surge: 35 kA IEC 1000-4-5 8/20µ waveform 875 joules
Turn-on: IS-PSP-120 - ±400Vdc L to N -- ±400Vdc L to G
               IS-PSP-240 ± 400Vdc L to N -- ±400Vdc L to G

Turn-on Time: 2ns L to L, 10ns L to G for 2kV/ns
Temperature: -40oC too +85oC Storage Operating


ORDER INFORMATION:

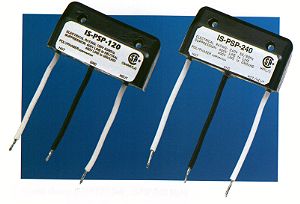

IS-PSP-120 for 120Vac (single phase)*

IS-PSP-240 for 24OVac (two phase)*

*NRTL/C, must be locally used/breakered @ 15A
