PolyPhaser Grounding Components

COPPER TO TOWER LEG
CORROSION FREE GROUND CLAMPS - TK SERIES


APPLICATION:

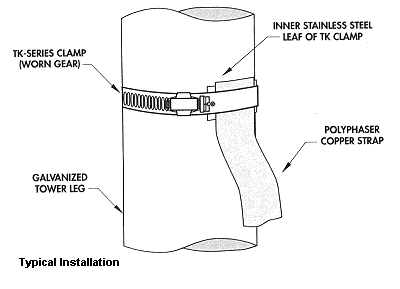

To provide a good copper to galvanized tower leg connection, without any corrosion or exothermic welding to your tower structure.


bulletLess than 1 milliohm typical contact resistance
bulletMarine quality 100% 300 series stainless steel
bulletClamps copper wire or strap
bulletNo dissimilar metal corrosion
bulletLess expensive than bronze clamps
bullet4 models from 5 8 to 5
bulletCan be joined together for even larger sizes
bulletCCK for cleaning copper before installing




ORDER INFORMATION:

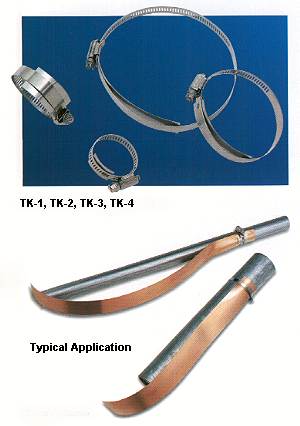

TK-1 - 5/8" to 1-1/4" -- 1-1/ 2" (tapered) strap to ground rod
TK-2 - 1-1/4" to 2-1/4" -- 1-1/2" strap to Rohn 25, 45 and 65 tower legs
TK-3 2-1/4" to 3-3/4" -- 1-1/2" strap to water mains
TK-4 3-1 2" to 5" -- 3" strap to fire raisers tower legs

Note: Typical contact resistance <0.0001 Ohm
