Protects all connected equipment including HomePlug® data networks connected via existing AC wiring.

One dedicated and protected HomePlug® compatible AC receptable – it’s as simple as plugging in HomePlug® enabled equipment.

Five EMI filtered receptacles prevent unwanted electrical noises from being introduced into the circuit by peripheral devices. These noises have been proven to degrade signal transmission quality and speed.

The TII HNP6 circuitry provides 120VAC, Single Phase, 50/60 Hz, 15 Amp Power Line Protection.

The AC power protection section is a self restoring power line surge suppressor incorporating gas discharge tube and solid-state surge suppression elements.

The surge absorbing capability of TII HNP6 exceeds maximum recommended surge levels by IEEE.

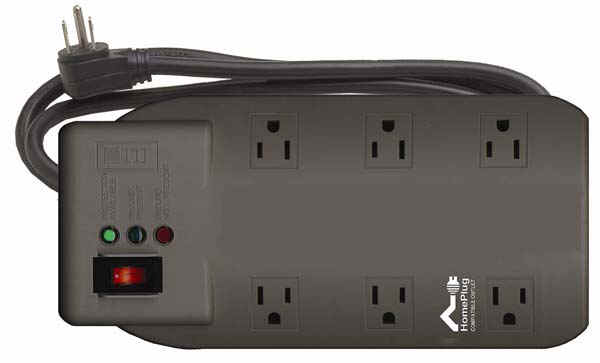

All six AC receptacles are spaced to allow for ancillary device transformers.

When plugged into an AC receptacle, the AC protection circuit monitors the integrity of the protection in addition to indicating the presence of a ground.

Protection Available: Green lamp “on” indicates protection circuit is operational.

Ground Present: Green lamp “on” indicates there is a connection to the AC ground.

Ground Not Present: Red lamp “on” indicates that the unit did not detect the presence of an AC ground. The surge protection capability of the TII HNP6 has been compromised.

Common grounding serves as a ground potential equalizer eliminating any ground loop currents that may damage the connected equipment.
